Selection of heating cable type

Electric trace heating cable can be divided into four distinct product classifications. They vary from semi-rigid mineral insulated heating cables (MIHC) to the highly flexible, plastic sheathed and the conductive polymer heating cable.

The four commonly used types are:
Mineral insulated heating cable -operating temperature applications up to 600°C
Series circuit heating cable (constant watt output) -operating temperature applications up to 400°C
Parallel circuit heating cable (constant watt output) -operating temperature applications up to 425°C
Self-regulating heating c:able (variable watt output) -operating temperature applications up to 150°C (215°C intermittent)

Mineral insulated heating cables are the most rugged and durable type of heating cable. Due to their construction, they can have very high watt output which can be used in some process heating applications. These cables are also noted for having a long life when properly installed since they contain no organic materials which can deteriorate with age.


Constant wattage heating cables combine features of series and parallel resistance heating cables. Their parallel bus wire construction and uniform output characteristics make them easy to apply in the field. These cables combine high quality materials and rugged construction at a modest price.


Self-regulating heating cables are the latest advance in electric cable products. They are designed and built to regulate their output. As the process temperature drops, the cable's output increases; conversely, as the temperature rises, the cable's output decreases. The self-regulating effect has many positive aspects including reduced energy usage.

Mineral insulated heating cables (MIHC)

These are composed of a highly compressed mineral insulant which locates one or two resistance wires within an outer metal sheath of copper, cupro-nickel, stainless steel or nickel-based alloy (Fig 2a).

Single wire cables have a termination at each end and generally have to be formed into "hairpins~' to allow the circuit connections to be made at only one end of the pipe system.
They are often laid onto a pipeline in a triple run and star- connected across a 415V, 3-phase supply.

Double wire cables allow supply connections to be made at one end only,

Spiralling of MIHC around the pipework should be avoided to minimise the possibility of induced currents in the pipework.

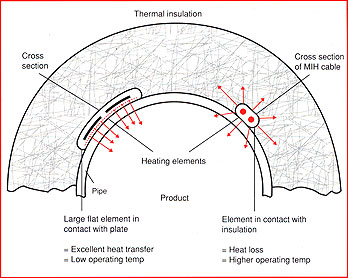

The heat transfer efficiency can be less than that of a flat-form heating tape because of the contact limitations imposed by fitting one circular cross section to another (unless a form of heat transfer medium is used). Likewise on some installations it is practicable to cover over the fully installed heating cables with aluminium foil prior to the application of thermal insulation. This will prevent the heating cables becoming encapsulated in the lagging with subsequent overheating.

Like all types of electric trace heating, it is important to match the cable resistance to the circuit length and power output. This can determine using Ohms Law.
Outputs of heating cable are shown as having a power density rated in watts/metre:

max sheathed temperature of 200°C up to 30 watts/metre for copper sheathed cable max sheathed temperature of 400°C up to
100 watts/metre for cupro-nickel sheathed cable max sheathed temperature of 600°C up to 225 watts/metre for stainless steel sheathed cable

Thermostatic control is essential with this system, especially when operating at high temperatures.


Series circuit heating tapes and cables (constant watt output)

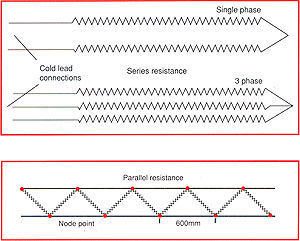

These are composed of two or more resistance wire elements connected to form a series or series-parallel electric circuit insulated and/or covered in a suitable insulating material
(Fig 4a).

This type of heating cable/tape is normally supplied in predetermined, factory-terminated lengths and has a constant power output at rated value when energised. Series circuit heaters are most commonly used in a 3 phase configuration for heating of long pipelines.
They are available with optional metal wire braid outer coverings for increased mechanical and electrical protection and for hazardous area use.

Series circuit heating units are available for operating temperature applications up to 400°C and at power ratings up to 150W/metre.

Temperature control is normally provided by a thermostat or sensor which can be combined with resistance monitoring current sensing and RCD protection.



Parallel circuit heating tapes and cables (contstant watt output)

These are constructed from a single resistance wire element, wrapped or spiralled around two insulating bus-bar conductor which run the length of the heating tape or cable.

The resistance wire is designed to make electrical contact with alternate bus-bars at predetermined intervals, eg 600mm. These connections are made at the 'NODE' point where the nickel- chrome resistance heating wire is either welded or connected by rivets to the bus-bars forming the parallel resistance conductors. As a result a sequence of electrically parallel heating circuits are formed along the length of the heating unit .

Parallel circuit heating tapes and cables may be cut to any convenient length within the limits imposed by the maximum heating circuit length (typically 50 to 100m) and minimum bus- bar connection interval.

In practice this type of heating tape or cable is suitable for complex pipework systems and/or for maintenance purposes, since lengths of new tape can be added in the field.}



Because of the parallel circuit design feature, the power output per unit length is constant, regardless of the overall length of the heating unit.

Parallel circuit tapes and cables are available for operating temperature applications up to 425°C and with power density outputs up to 130W/m.

Temperature control is normally by the use of thermostats or other sensors whilst a tinned copper braiding can be used with an RCD for electrical protection but at the same time also providing mechanical protection.

Self-limiting or self-regulating heating tapes and cables (variable watt output)

The flfst parallel circuit self-regulating heating tape was introduced to the industrial and commercial markets in 1970.By using a technology consisting of a conductive carbon polymer to form a cross-linked self-regulating heating element which was extruded onto two bus-bars running the length of the heating units to create an infmitely parallel circuit.

The self-regulating core is in essence an infinite number of parallel resistors which permits the cable to be cut to any length without creating cold sections. Because it is self-regulating and infinitely parallel, the output varies along the length of the cable depending upon the temperature of the core of the heater. An optional metallic braid covering can be provided for additional mechanical or electrical protection and for hazardous areas.

As it is flexible it can be overlapped without burnout, making it easy to trace flanges, valves and instruments. Maximum circuit lengths are typically 50 to 200m.

Self-limiting heating tapes are used primarily for frost protection but types now exist having a maximum continuous operating temperature of about 150 DC with a maximum withstand temperature of around 200 DC. These tapes are available at a power density rating of up to 60-80W 1m at 10°C pipe temperature, but power declines above this temperature.

Self-limiting heating tapes can be used in many applications where temperature control by thermostat or sensor is not required. However, higher pipework temperature will be produced in response to rising ambient temperature, and since the power output does not fall to zero when this temperature is reached an additional temperature controller, ie thermostat is required.

Circuit breakers must have sufficient capacity to allow for the inrush current of initial start-up, a feature unique to self-limiting heating tape, because of the variable power output/temperature characteristic. The lower the selected start-up temperature is, the higher the power and thus the bigger the electrical protection size would be.
